Description

Product details

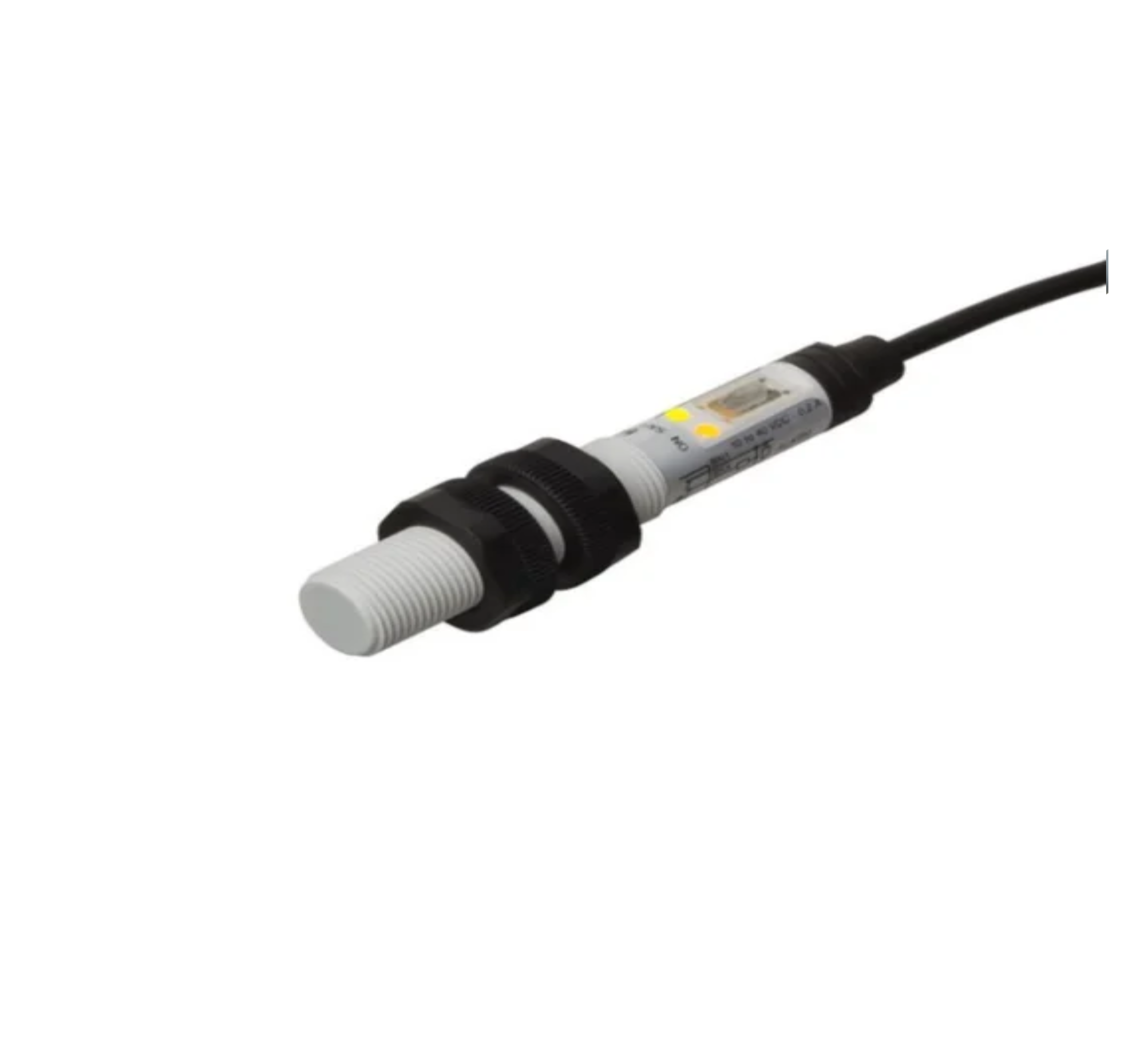

Capacitive proximity switches with a sensing distance of either 4 mm flush mounted in metal or 8 mm nonflush mounted. The switching points can be altered by means of the teach-in function. 3-wire DC output with selectable make (NO) or break (NC) switching and NPN Alarm. Grey polyester housing with 2 m PVC cable or M12 plug. SPECIFICATIONS: • Featuring TRIPLESHIELD™ Sensor Protection • Sensing distance: 0.5 - 8 mm • Teach-in of sensing distance via push-button or wire • Automatic detection of NPN or PNP load • Selectable make or break switching by means of the Teach-in function • Protection: short-circuit, transients and reverse polarity • Humidity compensation • Alarm output
