Description
Product details

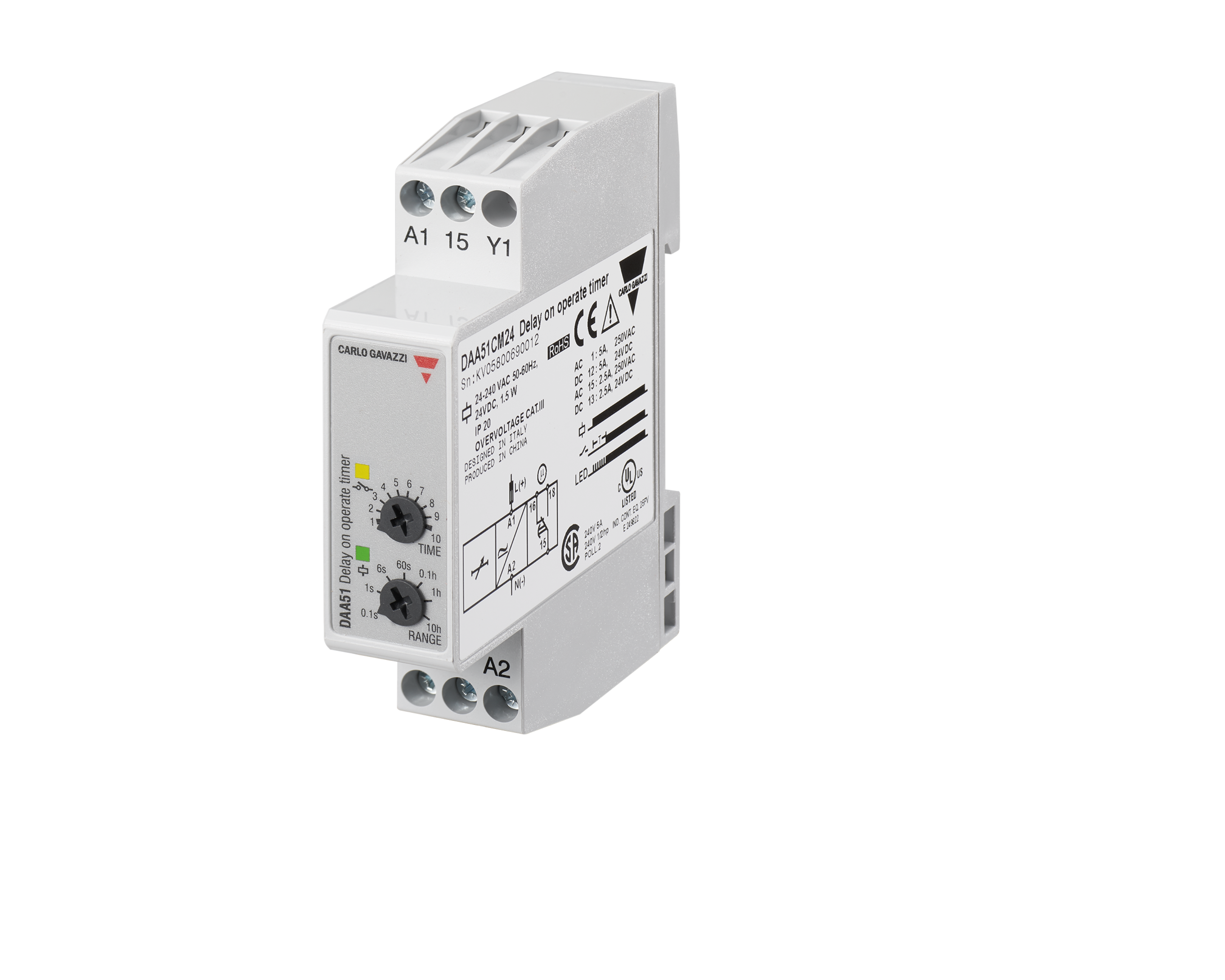

Multi-voltage delay on operate timer with 7 selectable time ranges within 0.1 s and 100 h. For mounting on DINrail Housing 17.5 mm wide for SPDT version and 35.5 mm for DPDT version, suitable both for back and front panel mounting. Specifications: • Time range 0.1 s to 100 h • Knob selection of time range • Knob adjustable time setting • Automatic start • Repeatability: ≤ 0.2% • Output: 5 A SPDT or 5 A DPDT relays • For mounting on DIN-rail in accordance with DIN/EN 50 022 • 17.5 mm (DAA51C) or 35.5 mm (DAA71D) DIN-rail housing (DIN 43880) • Combined AC and DC power supply • LED indication for relay status and power supply ON
