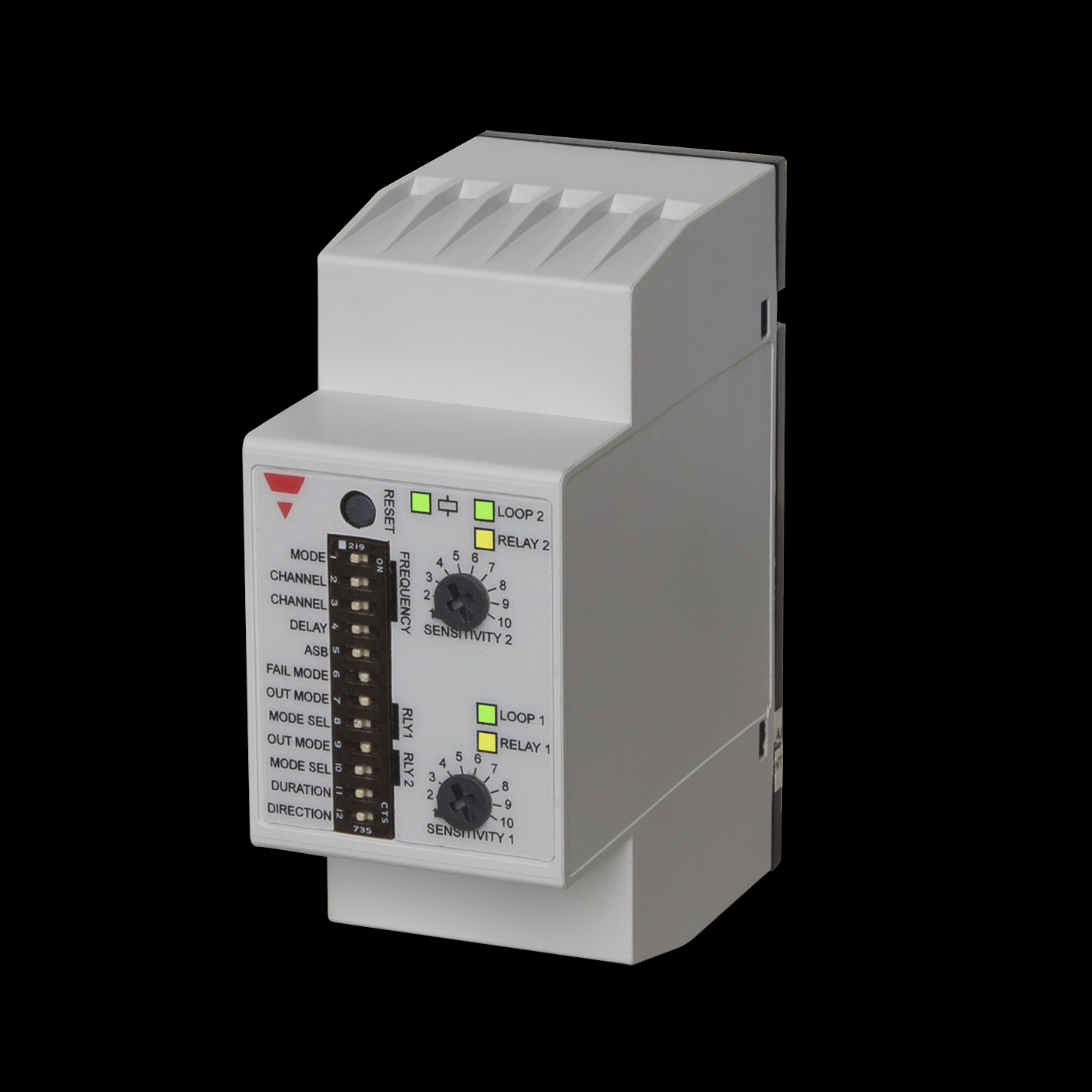

MAIN FEATURES: • Loop input inductance: 20 μH to 1000 μH • Adjustable sensitivity in 10 steps: 0.01% to 1.00% via potentiometer • Automatic loop frequency tuning or manual tuning via 4 adjustable loop frequency channels to avoid crosstalk • Automatic Sensitivity Boost (ASB) for high bed vehicle detection • Selectable fail safe and fail secure mode • 2 x SPDT relay outputs, selectable operation as pulse or presence switching • Multicolor power/fault LED indication for easy setup and intuitive diagnostic • Individual loop state multicolor LED to indicate different loop status and fault. • Loop diagnostic capability: loop short circuit, loop open circuit, inductance out of range, channel crosstalk. • Directional logic for dual loop. • Wide range power supply: 24-240 VAC/VDC, 45-65 Hz (LDPxPA2DU24) and 12-36 VAC/VDC, 45-65 Hz (LDPxPA2DU12).
